2026 Wayne County Engineering Protocol // Deep Clay Stabilization
Detroit & Wayne County Foundation Repair & Basement Waterproofing
(313) 367-4564Permanent structural foundation restoration across Detroit, Dearborn, Livonia, Canton, and Westland. We stabilize sinking footings with hydraulic push piers, reinforce bowing walls with carbon fiber, and stop water infiltration with commercial interior French drains.
Wayne County service lines
7 lines · (313) 367-4564Overview
What Causes Foundation Cracks and Water Intrusion in Wayne County?
Wayne County foundation failure is primarily caused by glaciolacustrine heavy clay soils combined with freeze-thaw cycles and severe hydrostatic groundwater pressure. During humid Michigan spring thaws and heavy storm deluges along the Rouge River basin and Lake St. Clair watershed, saturated clay expands forcefully against basement masonry, causing horizontal wall bowing, stair-step mortar fracturing, and basement floor seepage that requires permanent hydraulic underpinning or interior French drain systems.
1. Expansive Glacial Clay
Southeast Michigan sits atop deep glacial sediment composed of high-plasticity clay minerals deposited during the retreat of the Laurentide ice sheet. As precipitation fluctuations cycle between dry August droughts and wet April rains, soil expands and contracts by up to 10% in volume, exerting immense lateral force against basement block walls and causing inward bowing.
2. Hydrostatic Water Pressure
Groundwater pooling along foundation footings without proper sub-floor perimeter drainage creates unyielding hydrostatic pressure. Water forces its way through the cold joint between the footing and the poured floor, as well as porous mortar joints, resulting in flooded basements, wet carpet, and destroyed mechanical equipment.
3. Differential Footing Settlement
When home footings rest on unconsolidated soil or poorly compacted backfill, isolated portions of the home sink faster than others. This differential settlement produces sticking doors, cracked drywall, and diagonal exterior brick separation requiring foundation stabilization with push piers driven to dense load-bearing hardpan or bedrock.
Wayne County Soil Dynamics & Structural Geology
Understanding why residential foundations fail across Wayne County requires examining Southeast Michigan's unique glacial geological history. The entire Detroit metropolitan region was formed under prehistoric glacial lakes, including Glacial Lake Maumee and Lake Whittlesey. These vast bodies of ancient meltwater deposited thick layers of dense, impermeable lacustrine clay over underlying limestone and shale bedrock formations.
In suburban municipalities such as Canton, Livonia, Westland, and Dearborn, foundation footings are poured directly into this expansive clay layer. Unlike granular sandy soils found on Michigan's west coast, clay possesses exceptionally high water retention and low hydraulic conductivity. During dry summer periods, clay loses moisture and shrinks away from the foundation perimeter, creating voids beneath outer footings and causing foundation corners to sink. When heavy autumn downpours and spring snowmelts arrive, the desiccated clay absorbs water and expands aggressively, exerting intense lateral pressure against basement masonry.
Furthermore, winter frost penetration in Wayne County frequently extends 42 inches below grade. When sub-surface water freezes, it expands by approximately 9% in volume, creating frost heave forces capable of lifting light unheated foundations, garage slabs, and exterior patio footings. Over decades of thermal cycling, these alternating expansion and contraction forces shear mortar bonds, warp framing members, and create permanent structural displacements.
Our contractors utilize engineering-grade diagnostic protocols to evaluate every failure mechanism. By employing digital laser transits, acoustic sounding tools, and hydraulic drive monitoring, our teams distinguish between non-structural curing shrinkage and active structural failure, ensuring that every homeowner receives a targeted, permanent remediation plan.
Itemized Pricing Ledger
2026 Wayne County Foundation Repair Cost Guide
Transparent baseline price ranges based on empirical engineering scopes across Detroit and Wayne County suburbs.
| Foundation Procedure | Typical Scope & Engineering Specifications | Baseline Price Range |
|---|---|---|
| High-Pressure Epoxy Crack Injection | Dual-stage structural epoxy welding & polyurethane hydrostatic water stop (per 10 linear feet) | $450 – $950 |
| Interior Perimeter French Drain System | Dual-pipe perforated drainage tile, dimpled wall flashing, washed round gravel (per linear foot) | $65 – $115 / ft |

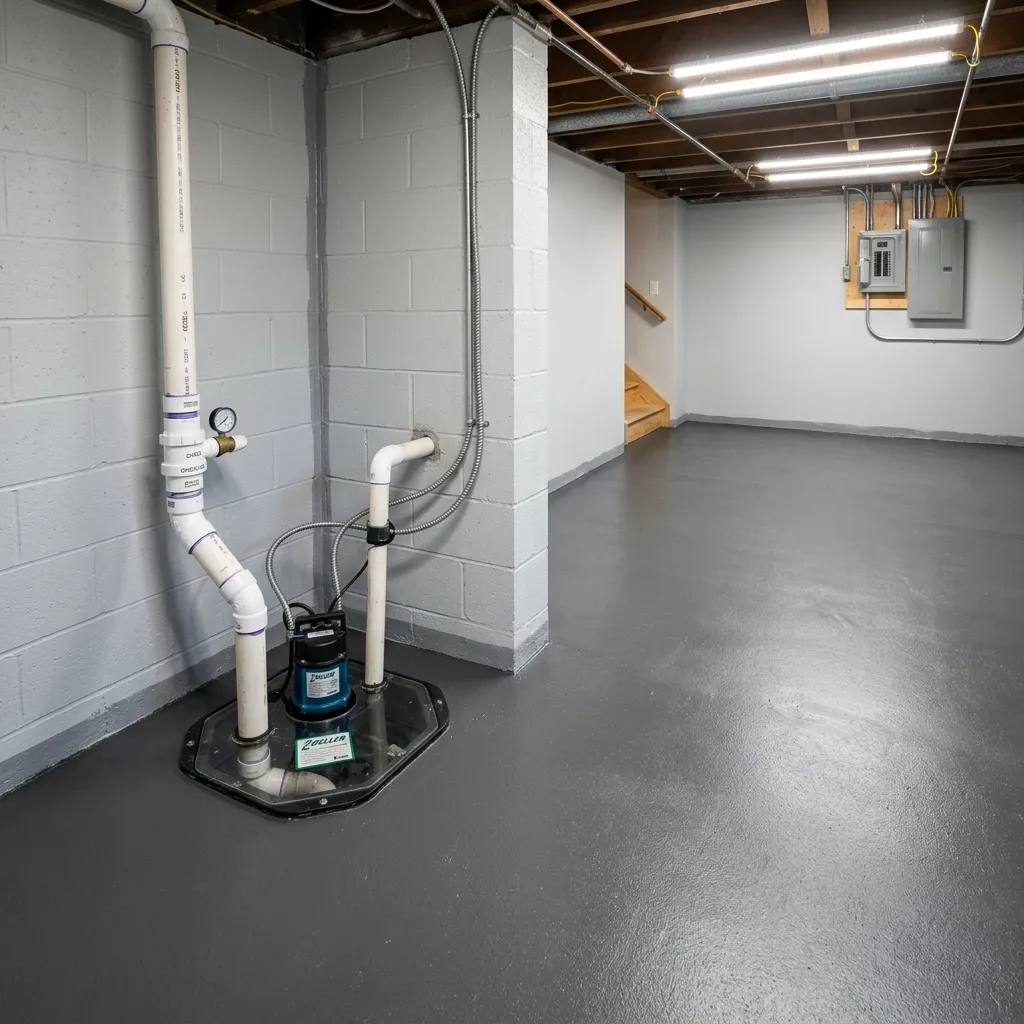

| Submersible Sump Pump with Battery Backup | Zoeller 1/3 or 1/2 HP cast-iron primary pump + AGM battery-powered emergency backup pump | $1,850 – $3,400 |

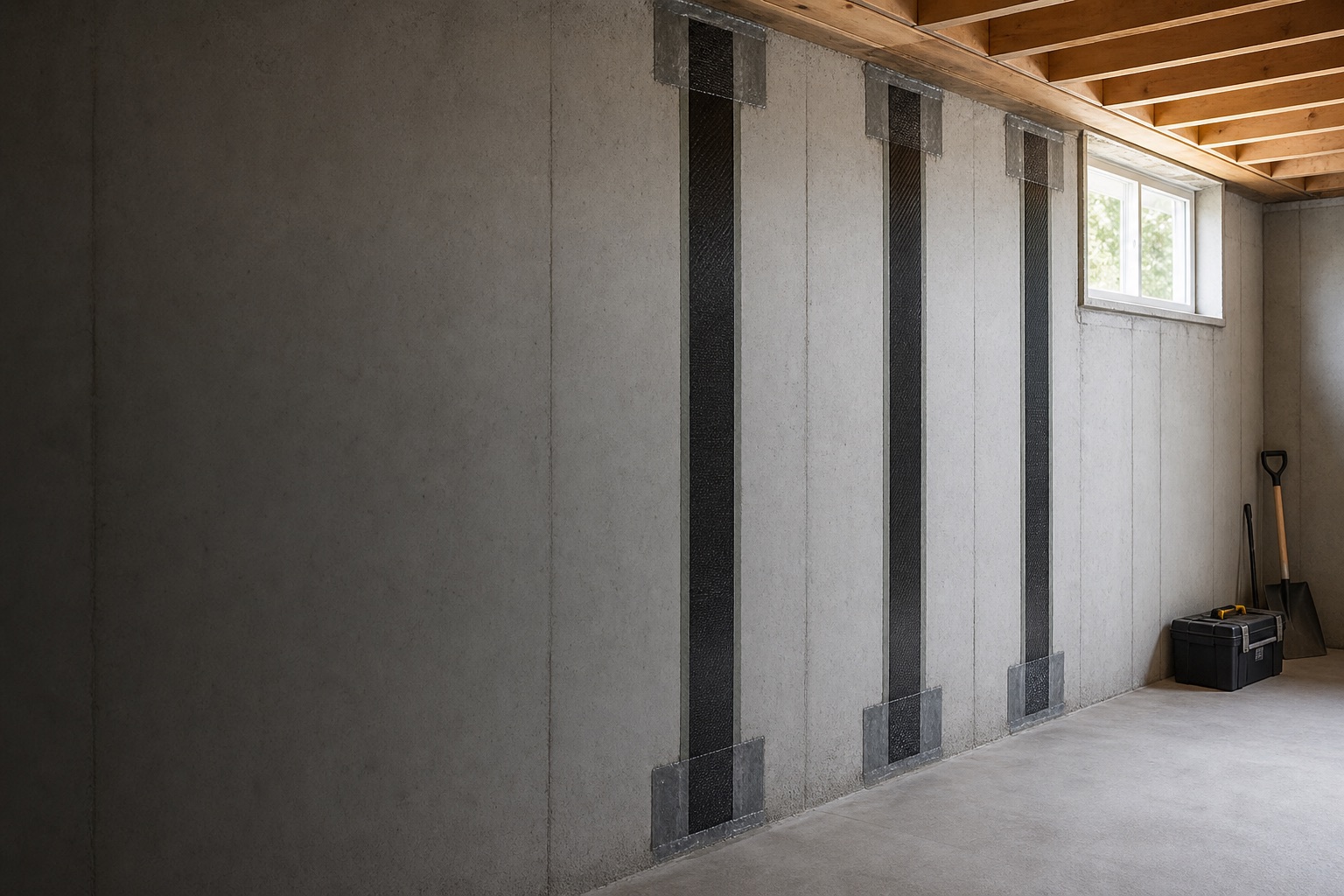

| Carbon Fiber Bowed Wall Reinforcement | Aerospace-grade high-tensile carbon grid straps epoxied to interior block faces (per strap) | $650 – $950 / strap |
| Heavy-Duty Steel I-Beam Bracing | Adjustable structural steel columns anchored to basement floor slab and ceiling joists (per beam) | $1,200 – $1,800 / beam |
| Foundation Stabilization: Hydraulic Push Piers | Heavy-duty steel pier sections hydraulically driven to bedrock or load-bearing hardpan (per pier) | $1,600 – $2,400 / pier |
| Helical Screw Pier Foundation Stabilization | Triple-helix round shaft steel piers torque-installed for light commercial and porch foundations | $1,750 – $2,600 / pier |
| Sealed 20-Mil Crawl Space Encapsulation | Heavy reinforced antimicrobial vapor barrier, sealed rim joists & commercial dehumidifier | $4,500 – $11,500 |
| Concrete Slab Leveling (Polyjacking) | Foam lift for sunken stoops, walks, driveway sections and garage floors | $600 – $4,000 |
Note: Exact project pricing depends on site access, soil resistance depth, wall construction material (poured concrete vs concrete masonry units), and water table height. A free on-site engineering evaluation is required for binding quotes.
Trade Comparison Matrix
Why Choose a Dedicated Foundation Contractor Over General Remodelers?
Evaluating structural engineering capability against general handymen and national lead aggregators.
| Service Dimension | Wayne County Foundation Repair | General Remodeling Handymen | National Motor Club & Third-Party Lead Portals |
|---|---|---|---|
| Deep Pier Driving Equipment | Hydraulic manifold drive units measuring exact hydraulic PSI load resistance to refusal depth | None (hand tools, surface leveling pads, or temporary bottle jacks only) | Subcontracted out to unknown lowest-cost local general laborers |
| Soil Mechanics Knowledge | Evaluates Wayne County glacial clay stratification, water tables, and frost line dynamics | Superficial assessment with no hydrostatic pressure calculations | Commissioned telephone sales representatives operating in remote call hubs |
| Real-Time Intake & Dispatch | Direct dial to local Wayne County dispatch coordinator at (313) 367-4564 | Unreliable voicemail, delayed callbacks, lack of dedicated field crews | Automated phone queues routed to arbitrary subcontractors across Michigan |
Service Corridors
Serving All Wayne County Municipalities & Highway Routes
Rapid field crew mobilization along major arterial corridors throughout Wayne County, Michigan.
Detroit
Midtown, Downtown, Palmer Park, Grand River, Woodward Corridor
Dearborn
Dearborn Hills, Ford Rd Corridor, Outer Drive, West Dearborn
Livonia
5 Mile to 8 Mile Corridors, Newburgh, Farmington Rd
Canton
Ford Rd, Canton Center, Michigan Ave Corridor
Westland
Wayne Rd, Ford Rd, Central City Parkway Corridor
Taylor
Telegraph Rd, Eureka Rd, Downriver Corridor
Dearborn Heights
Telegraph Rd, Beech Daly, Van Born Corridors
Wyandotte
Biddle Ave, Fort St, Detroit River Basin
Wayne County line
Protect Your Home's Structural Integrity Today
Schedule a no-obligation on-site foundation inspection across Wayne County. Receive an honest, engineering-grade assessment of your walls, floors, and basement water dynamics.
Comprehensive Wayne County Diagnostic Protocol
Accurately diagnosing structural failure requires evaluating the entire building envelope rather than treating isolated symptoms. Our Wayne County field contractors conduct high-precision forensic assessments using digital laser transit elevations to chart floor deflection across every square foot of the footprint. By establishing relative elevation contours, our engineers detect exactly which footing corners have settled into compressible clay strata and identify whether settlement is ongoing or historical.
In addition to laser elevation profiling, we perform electronic moisture vapor emission rate (MVER) testing across concrete basement floor slabs. In Southeast Michigan, elevated sub-slab moisture frequently causes floor adhesives to de-bond, luxury vinyl tile to buckle, and mold colonies to establish behind drywall partitions. Our non-invasive acoustic sounding hammers detect sub-slab voids and footing honeycombing where soil washout has occurred along interior drain channels.
Every residential evaluation concludes with an itemized structural report detailing wall deflection measurements, footing depth confirmations, soil type classification, and a blueprint recommendation. Homeowners receive transparent, fixed-price proposals for long-term property protection across Wayne County, Michigan.
